Description
Explosion proof lighting professional manufacturer in China.

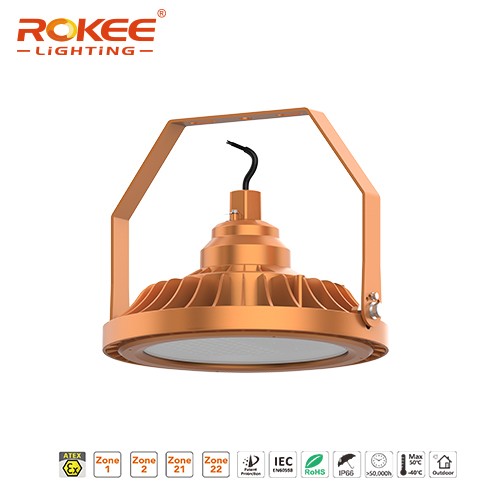

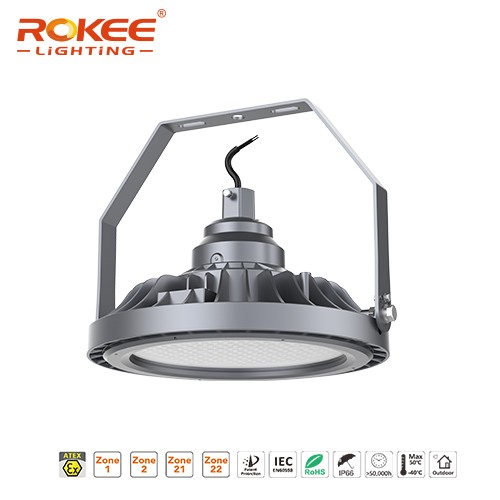

The EP-01 ex-proof high bay series is ROKEE LIGHTING specially designed for hazardous area lighting in Zone 1, 2, 21 and 22. Constructed from heavy duty die-cast aluminium and stainless steel with an orange or grey marine grade epoxy aluminium powder finish, the luminaire's housing is ATEX certified to provide excellent illumination.
FEATURE
● Strictly manufacture according to the Highest standards TUV-Rheinland IECEX, EN 60079-0-2018, EN 60079-28-2015,EN 60079-1-2014, EN 60079-31-2014,IEC60079-0-2017,IEC60079-1-2014,IEC 60079-28-2015,IEC60079-31-2021's requirements.
● Highest standard Driver and LED independent heat-sink design, Housing<85℃, suitable for T1-T6 environments.
● Very professional product design,Eliminated most of the internal air(the smaller the internal air, the lower the explosion energy),and Very professional manufacture process,Eliminated most of the water vapor of components.
● High transmittance 10mm thickness Explosion-proof tempering glass, reaching 140lm/w with CRI>80, and Strong impact resistance.(Resist 4J impact)
● The thickness of the explosion-proof surface is >10mm, Super strong explosion-proof performance.
● All Bracket and Screws use SUS304 stainless steel, Stronger corrosion resistance, Reaches C5 and WF2 anti-corrosion grade.
● Many screws connections, Strengthen Anti-seismic,Waterproof, Anti moisture, Anti dust performance, Real IP67, IK10, 5-year warranty.
SPECIFICATION
Power: 100W/120W/150W/180W/200W
Input voltage: 100-277VAC/200-480VAC
Lumens: 140Lm/W(Standard)
CRI: >80(>90 optional)
Symmetry Angle: 120°
Waterproof:IP66/IP67
Life Span:>50,000Hours
Warranty:5 Years
Operating Temperature:-40℃~+50℃
Storage Temperature:-40℃~+80℃
Optional: 0-10V Dimming, Dali

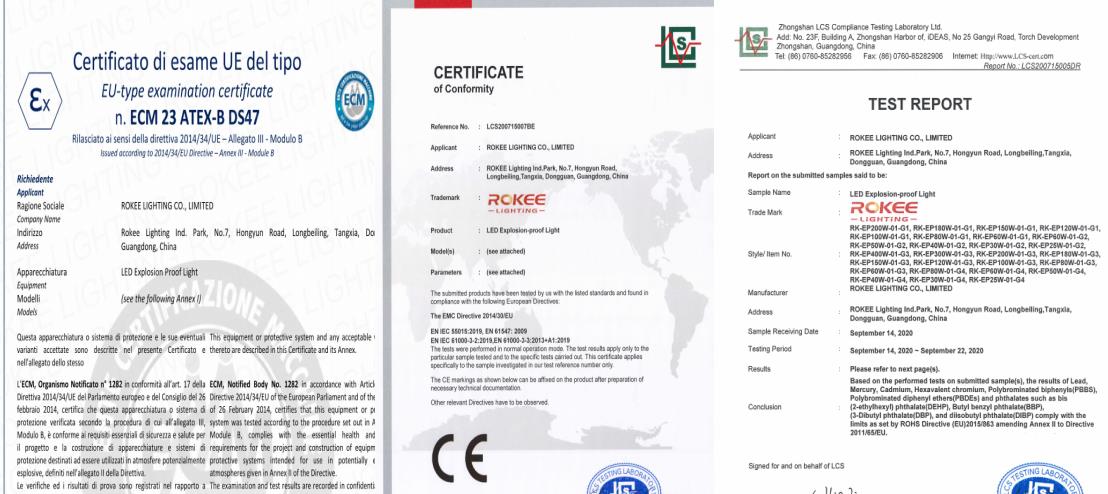

Certificate: ATEX, CE, RoHS

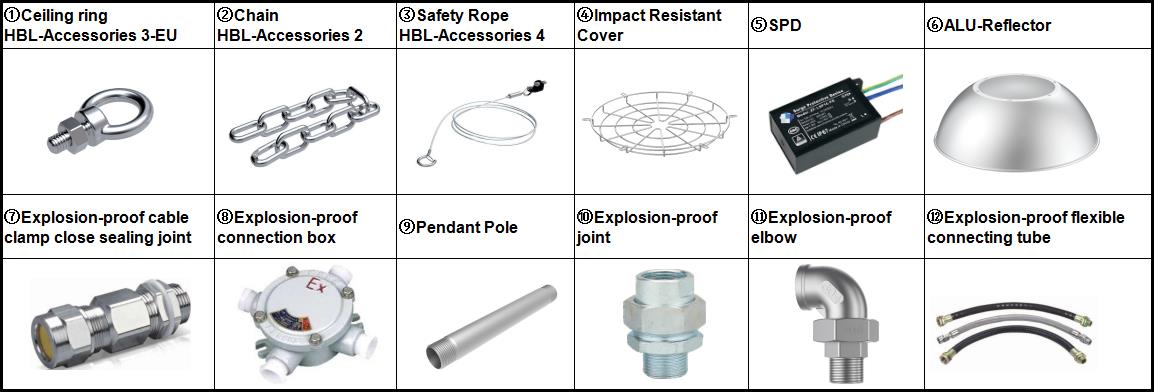

ACCESSORIES
①Ceiling Ring
②Safety Chain
③Safety Rope
④Impact Resistant Cover
⑤SPD
⑥ALU-Reflector
⑦Explosion-proof cable clamp close sealing joint
⑧Explosion-proof connection box
⑨Pendant Pole
⑩Explosion-proof joint
⑪Explosion-proof elbow
⑫Explosion-proof flexible connecting tube
APPLICATION
Class I. Division 1. Groups C. D.
Class l, Division 2, Groups A, B. C, D.
Class II, Division 2, Groups E.F, G.
Class III
Zone 1,Zone 2,Zone 21,Zone 22
Hazardous and harsh environments such as oil and gas, food and beverage chemicals, pharmaceuticals, mining and metal processing,
water and wastewater, power generation, ports and harbours, ships and shipyards, etc.

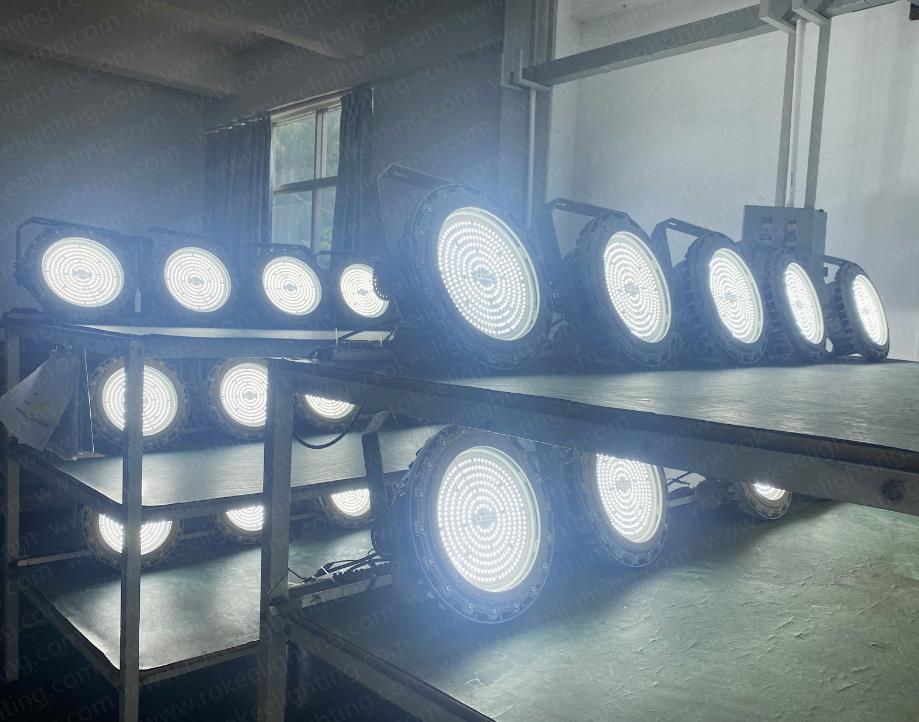

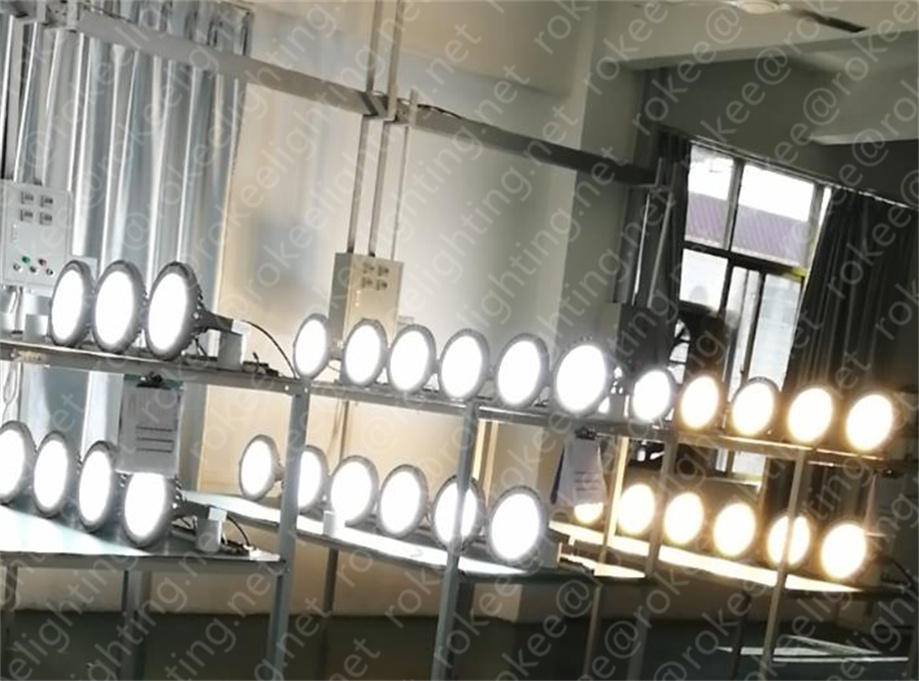

PRODUCE PICTURES
Feel free to contact us for more information on new models. rokee@rokeelighting.net
