Description
ROKEE LIGHTING is a leader, manufacturer and supplier in the field of stadium lighting solutions, offering 17 private stadium lighting fixtures designed to cover 200W-4800W, high lumen output, 150lm/w-170lm/w; global market certifications ENEC/TUV-CB/GS/CE/ROHS/IEC/UL/ ETL/DLC/PSE/SAA/C-TICK/SASO/LM79/IP66/IK10; 22,000 square metres production workshop, 230 employees, multiple modern production lines, production capacity of more than 4,000pcs per day; IQC/FQC/OQC multiple quality control departments to control the product quality, professional optical test equipment, provide IES Files; Experienced team of engineers to provide Dialux light simulation report; Excellent sales team, familiar with the import process in the global market, looking forward to be your close partner in China!

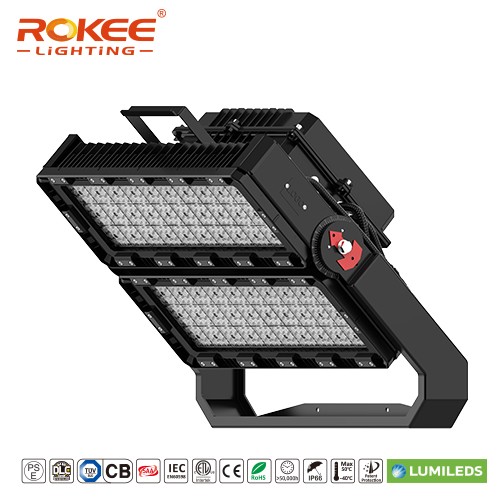

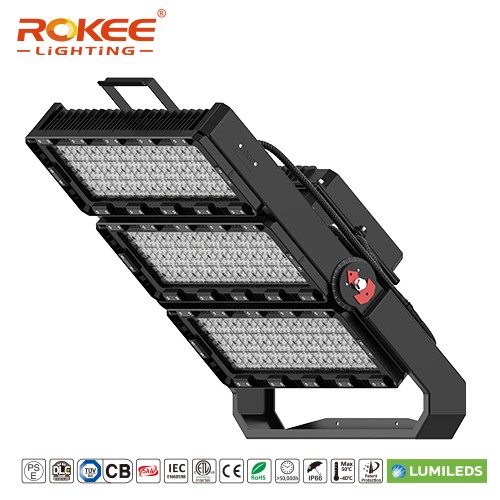

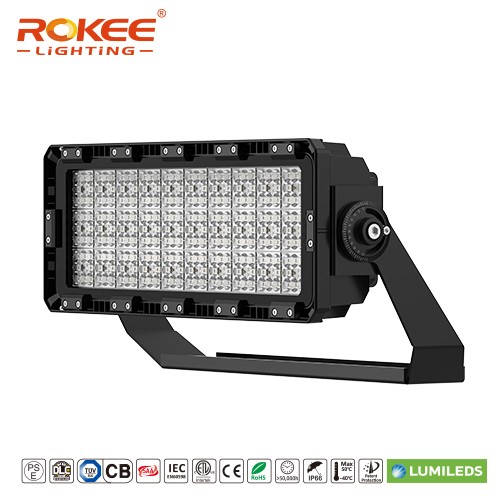

SPECIFICATION
- Nicely ADC12 Die-casting Aluminum Housing
- High transmittance PC lens, strong protection and good optical function
- Power: 1000W
- Driver Brand: INVENTRONICS EUM-680S840MG, EBM-1K2S740DG, EBM-1K2S740MG
- PHILIPS Xitanium Dim 250W 0.7A 1-10V 230V Q | 929000838508
-
MEAN WELL HLG-240H-48A/B;XLG-240-H-A/AB; HLG-320H-54A/B; XLG-320-H-A/AB
-
Lumens: 150Lm/W(Standard); 170Lm/W(Optional)
- Symmetry Angle: 10°/15°/30°/60°/90°
- Asymmetric Angle: 117x34°
- Waterproof:IP66
- Life Span:>100,000Hours
- Warranty:5 Years
- Operating Temperature:-40℃~+50℃
- Storage Temperature:-40℃~+80℃
- Optional: 0-10V Dimming, Dali, Zigbee, DMX, RGB
- Certificate: ENEC, TUV-CB, CE, RoHS, ETL, SAA
MOUNTING BRACKET ①P1A Yoke; ②P2A Rotatable Bracket ; ③P3A Slip Fitter
ACCESSORIES
①10KV/20KV SPD (Standard for 800W-1800W)
②1m Chain (Standard)
③Aiming Position Light
④Lighting cover
⑤Threaded pipe DC Power Cable Included
TEST EQUIPMENT
IES/Integrating sphere/Waterproof machine/Microscope/Oscillograph/High voltage tester/Salt spray tester/Temperature chamber
PRODUCT VIDEO

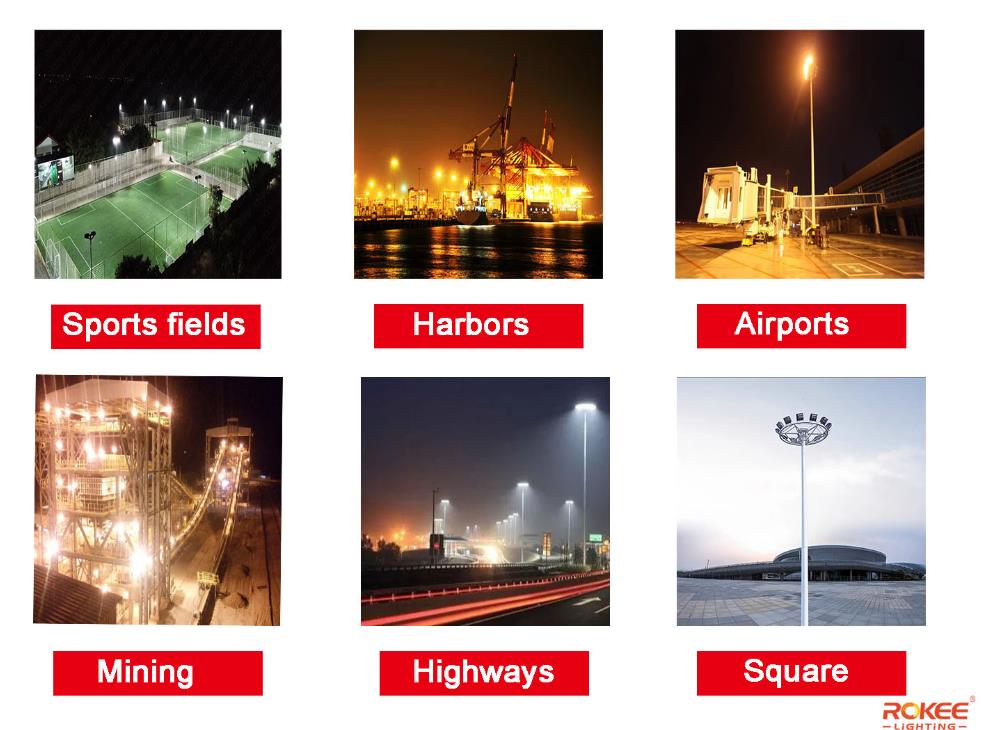

APPLICATION
Sports Lighting,Stadium lighting, Sports fields, Car parks, High mast installations Dock, Railway and container yards, Ports and other large scale outdoor applications, Architectural lighting, Landscape lighting,Industrial and commercial exterior lighting, Decorative lighting for holidays, Tradeshows, Exhibitions.
PROJETC
PRODUCE PICTURES
Inquiry us: rokee@rokeelighting.net
