Description

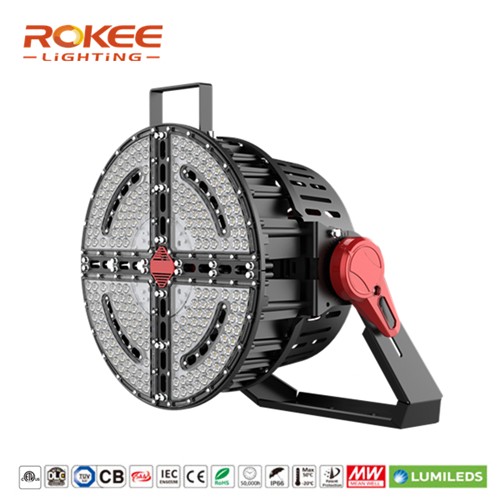

ROKEE LIGHTING patented private mold design 9th generation LED SPORTS LIGHT, efficiency up to 150Lm/w, innovative use of arc + cross-shaped hole design, reduce wind resistance at the same time can accelerate the heat dissipation, professional Anti-UV PC lens, 4 beam angles can be selected, the ideal choice for professional soccer field, golf course, tennis court lighting.
SPECIFICATION
- Nicely ADC12 Die-casting Aluminum Housing
-
Electrophoresis Paint + Outdoor Powder Paint
- Anti-UV PC Lens >95% Light Transmission, strong protection and good optical function
-
High efficiency and Energy saving Leds
- IK10 strong protection,good optical funtion
- Waterproof: IP66
- Life Span:>100,000Hours
- Driver Brand: INVENTRONICS EUM-320S760DG; EUM-320S760MG
-
PHILIPS Xitanium Dim 250W 0.7A 1-10V 230V Q | 929000838508
-
MEAN WELL HLG-320H-54A/B; XLG-320-H-A/AB
- Warranty:5 Years
- Operating Temperature:-40℃~+50℃
- Storage Temperature:-40℃~+80℃
| RK Code | Power | Lumen | CCT | Beam Angle |
| RK-FL300W-07(ID:G9) | 300W |
150Lm/W |
5700K | 15°/30°/45°/80° |
| RK-FL400W-07(ID:G9) |
400W |
150Lm/W |
5700K |
15°/30°/45°/80° |
|
RK-FL500W-07(ID:G9) |
500W |
150Lm/W |
5700K |
15°/30°/45°/80° |
|
RK-FL600W-07(ID:G9) |
600W |
150Lm/W |
5700K |
30°/45°/80° |
|
RK-FL700W-07(ID:G9) |
700W |
150Lm/W |
5700K |
15°/30°/45°/80° |
|
RK-FL800W-07(ID:G9) |
800W |
150Lm/W |
5700K |
15°/30°/45°/80° |
|
RK-FL1000W-07(ID:G9) |
1000W | 150Lm/W | 5700K | 15°/30°/45°/80° |
|
RK-FL1200W-07(ID:G9) |
1200W |
150Lm/W |
5700K |
30°/45°/80° |
BRACKET DESIGN
In order to meet the installation requirements of various sports field lighting projects, we have designed different brackets for this round LED Sports Light.
CERTIFICATES
Rokee's Portable Stadium Lights have obtained ENEC, TUV-CB, CE, RoHS,UL, ETL, DLC, SAA, LM79, LM80, ISTMT certificates issued by a third party authoritative laboratory (ISO17025), which can better support your bidding projects and sales in the local market.
DIMMING SYSTEM
Wired dimming control: 0-10V Dimming, Dali, DMX512
Wireless dimming control: Zigbee
ZIGBEE SYSTEM DIAGRAM
Zigbee-enabled LED lighting fixtures can be remotely monitored and controlled using Zigbee gateways, upgrading and transforming non-intelligent traditional LED sports lighting products into intelligent lighting, which can be easily realized through mobile APP or PC for intelligent control of single lights, group lights and regional scenes, and is suitable for intelligent lighting application scenarios such as sports stadiums, arenas, and playgrounds.
DRIVER REMOTE SPLIT INSTALLATION
- Reduce Wind Resistance (EPA value)
- Reduce Pole's Bearing
- Easy Installation,Simple Installation, Saving Time
- Convenient For Maintenance
- Easy Change Dali/Dimmable/Digital Driver
- Multiple High Mast Light Combined Unlimited Quantity
- Independent Assortment of lamp
- Custom Driver Cabinets Available
ACCESSORIES
①10KV/20KV SPD (Standard for 800W-1800W)
②1m Chain (Standard)
③Aiming Position Light
④Lighting cover
⑤Threaded pipe DC Power Cable Included
PRODUCTION PICTURES
PROJECT PICTURES
APPLICATION
Sports lighting,Stadium lighting, Sports fields, Car parks, High mast installations Dock,Railway and container yards, Ports and other large scale outdoor applications, Architectural lighting, Landscape lighting, Industrial and commercial exterior lighting,Decorative lighting for holidays, Tradeshows, Exhibitions.
