Description

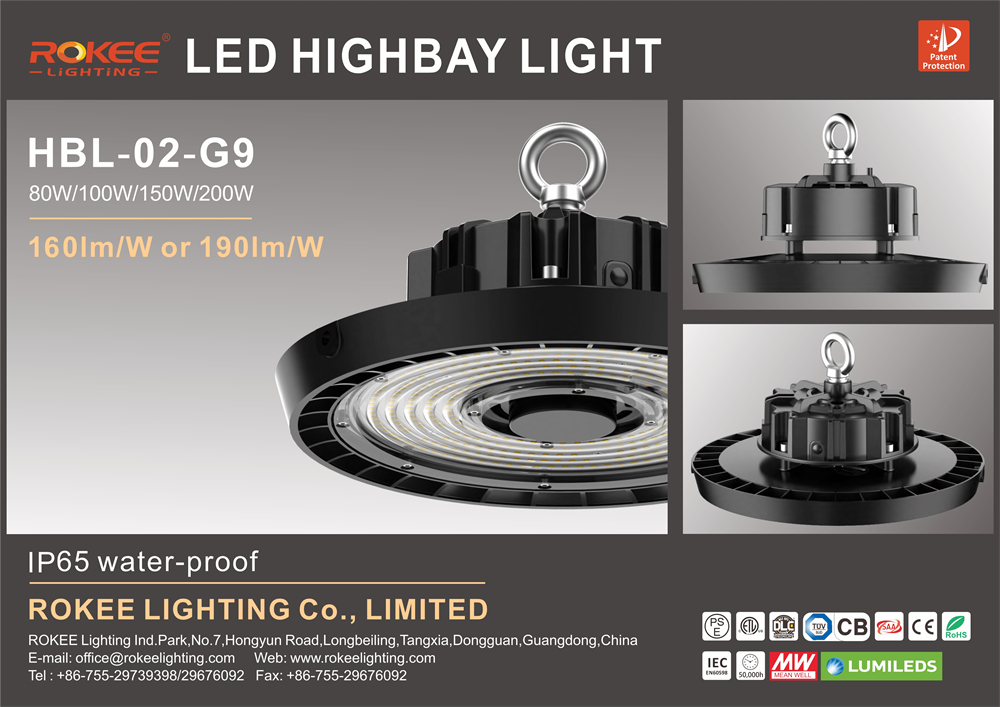

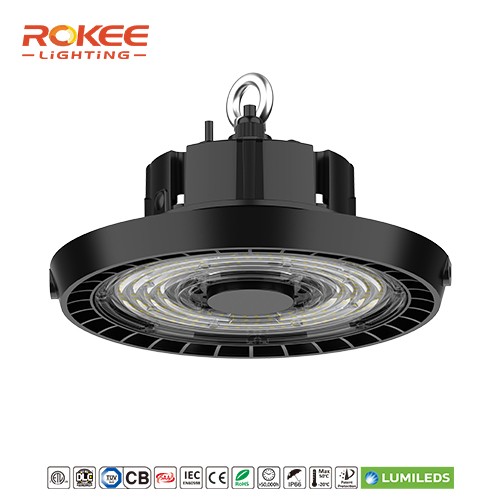

ROKEE LIGHING's 9th generation UFO High Bay Light design features a heavy-duty die-cast aluminum housing, 800pcs of LUMILEDS LED chips, and a lumen output of up to 190lm/w, making the 240W equivalent to a 350W regular High Bay Light.
FEATURES
1.
190Lm/w Patent design LED High bay Light, Smooth housing,80W-200W, 5-year
warranty, IK10.

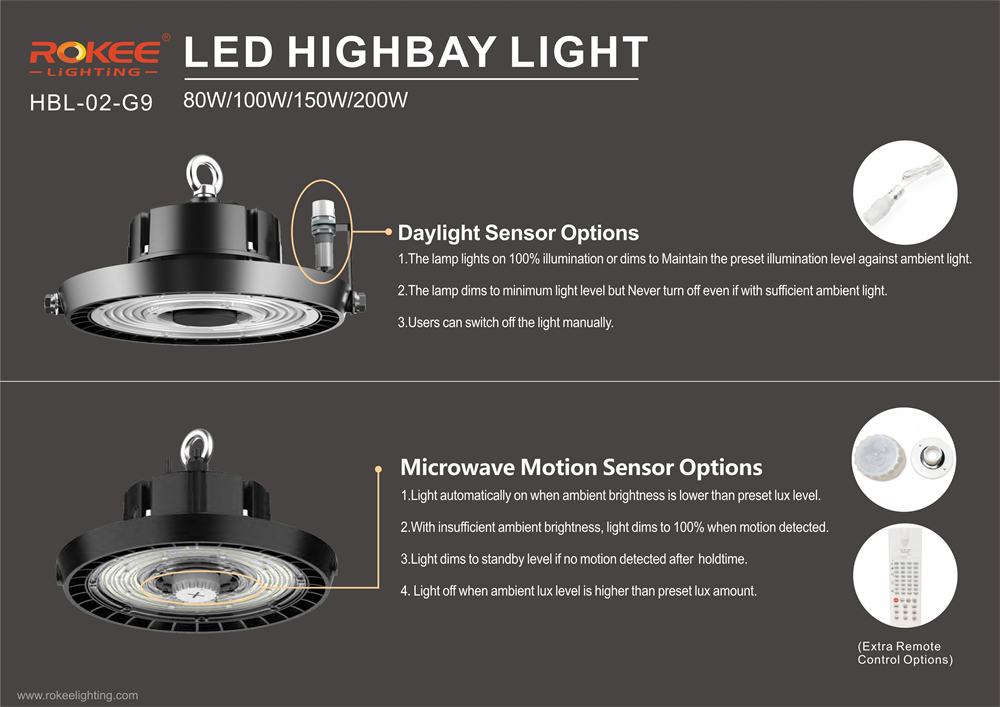

2. Its Motion sensor is only 11usd/pc,easy to install.Its
Bracket is only 3.2usd/pc,very competitive.
3.
TUV-CB/CE/GS/RoHS/cULus/cETLus/DLC/SAA/IEC/PSE/SASO/LM79/LM80/C-TICK/IP65.
4.
ISO 9001 manufacturer, With very strict quality control system. Dimmable /
60°/90°/120° lens optional.
SPECIFICATION

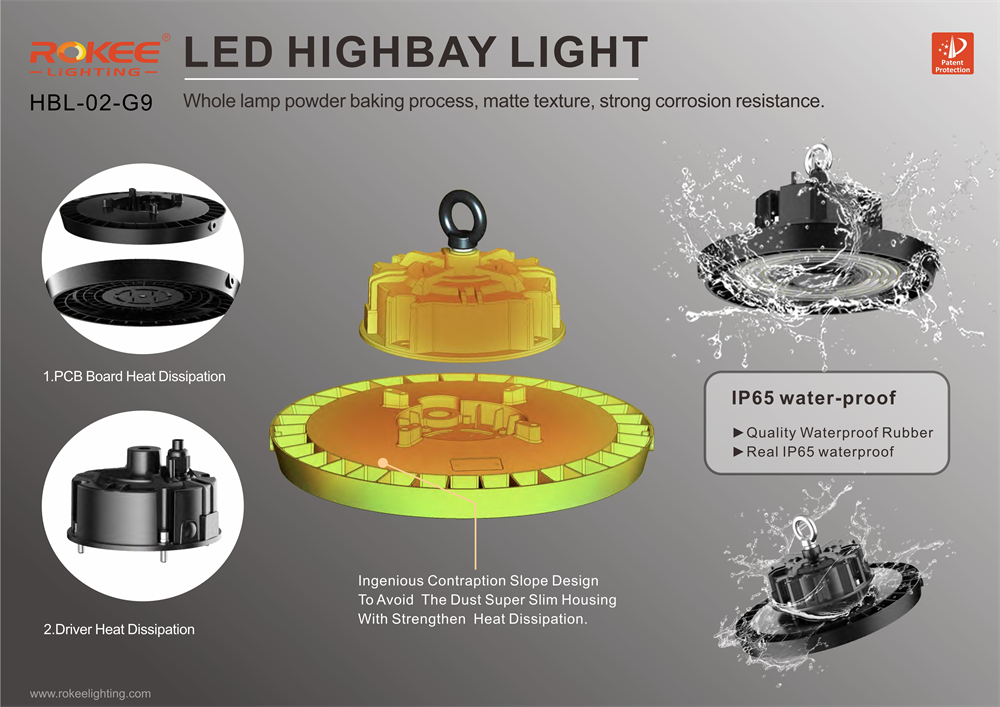

- HOUSING: Die-cast aluminum with a durable, outdoor ectrophoretic paint
- POWER CONSUMPTION: 80W/100W/150W/200W/240W
- DRIVER BRAND: Meanwell XBG-100-A/AB, XBG-160-A/AB, XBG-240-A/AB;
- SOSEN SS-100CP-54/B, SS-120CNL-130BH ; SS-150CP-54/B, SS-150CNL-260BH ;SS-200CP-54/B, SS-200CNL-260BH ;
-
LIFUD LF-FHB100YA/YB/YCIV, LF-FHB150YA/YB/YCIV, LF-FHB240YA/YB/YCIV
- PHILIPS Xi 100W 0.35-0.55A 1-10V GL AUX RI132,
- PHILIPS Xi 150W 0.52-0.84A 1-10V GL AUX RI132,
- PHILIPS Xi 200W 0.66-1.10A 1-10V GL AUX RI132S,
- PHILIPS Xi 240W 0.82-1.35A 1-10V 100-277V RI132
- INPUT VOLTAGE: AC100-277V
- LENS MATERIAL: Clear/Foggy Polycarbonate(PC)
- LIGHT OUTPUT: 190Lm/W
- CRI : ≥ 70/≥ 80 (≥ 90 optional)
- OPERATING TEMP: -40°C-+50°℃
- STORAGE TEMP.: -40°C-+80°C
- DIMENSIONS: 290mm Dia x 172mm H(80W/100W/150W); 338mm Dia x 172mm H(200W/240W)
- LIFESPAN: > 50,000 hours of maintenance-free operation to L70 at 25˚C
- MOUNTING DETAILS: P1Hanging mounting,P2 Ceiling mounting
- CERTIFICATIONS : CE,ROHS
- MEASUREMENT(mm):L365*W365*H175(80W/100W/150W);L415*W415*H177(200W/240W)
- GROSS WEIGHT: 4.02kg/8.9lbs(80W/100W/150W); 5.74kg/12.7lbs(200W/240W)

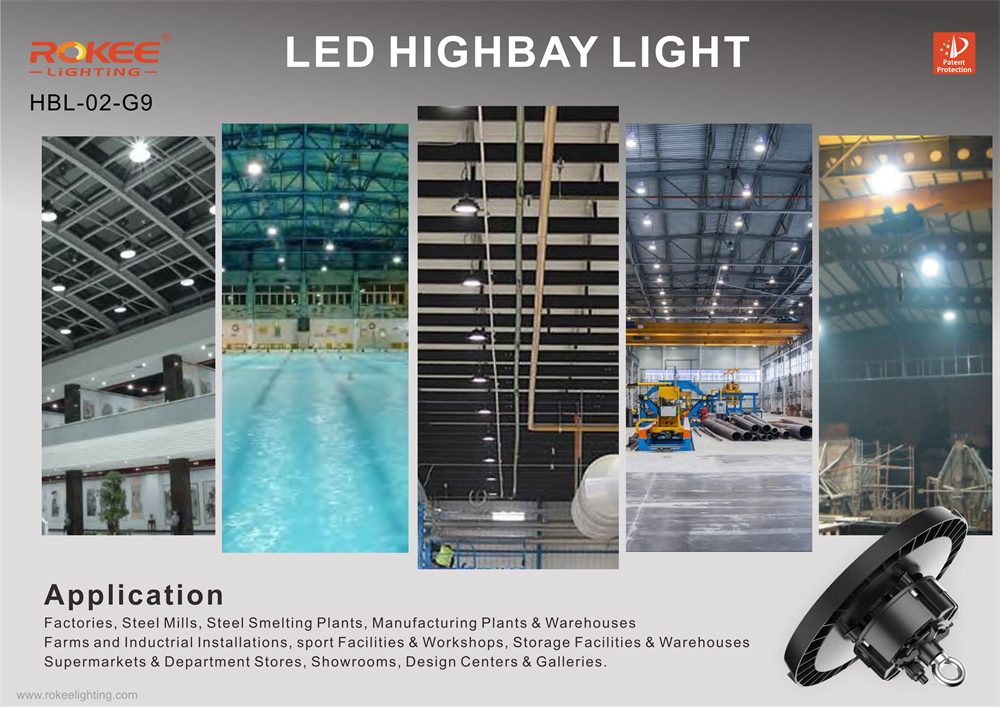

APPLICATION
Factories, Steel Mills, Steel Smelting Plants, Manufacturing Plants & Warehouses,Farms and Inductrial Installations, sport Facilities & Workshops,Storage Facilities & Warehouses,Supermarkets & Department Stores, Showrooms, Design Centers & Galleries.
ROKEE Lighting's LED Industrial Lights have passed the international quality certificates,including UL,TUV-CB,CE,SAA,ROHS,IP65.Many of our industrial lighting projects have gained good reputation from our oversea customers.Our LED Industrial Lights have been exported to Europe,America,Australia and Africa over 80 countries.
We have skilled engineers to answer all your questions and enquiries and provide all-round solutions based on your outdoor field lighting projects and provide technical training.
We do everything we can do to support the policy-Green and energy saving.With the support of government and trust of customers,supplying you good quality products at competitive price,stable and strong package,fast delivery time and timely after-sales service are our total tenets.
Inquiry us: rokee@rokeelighting.net
